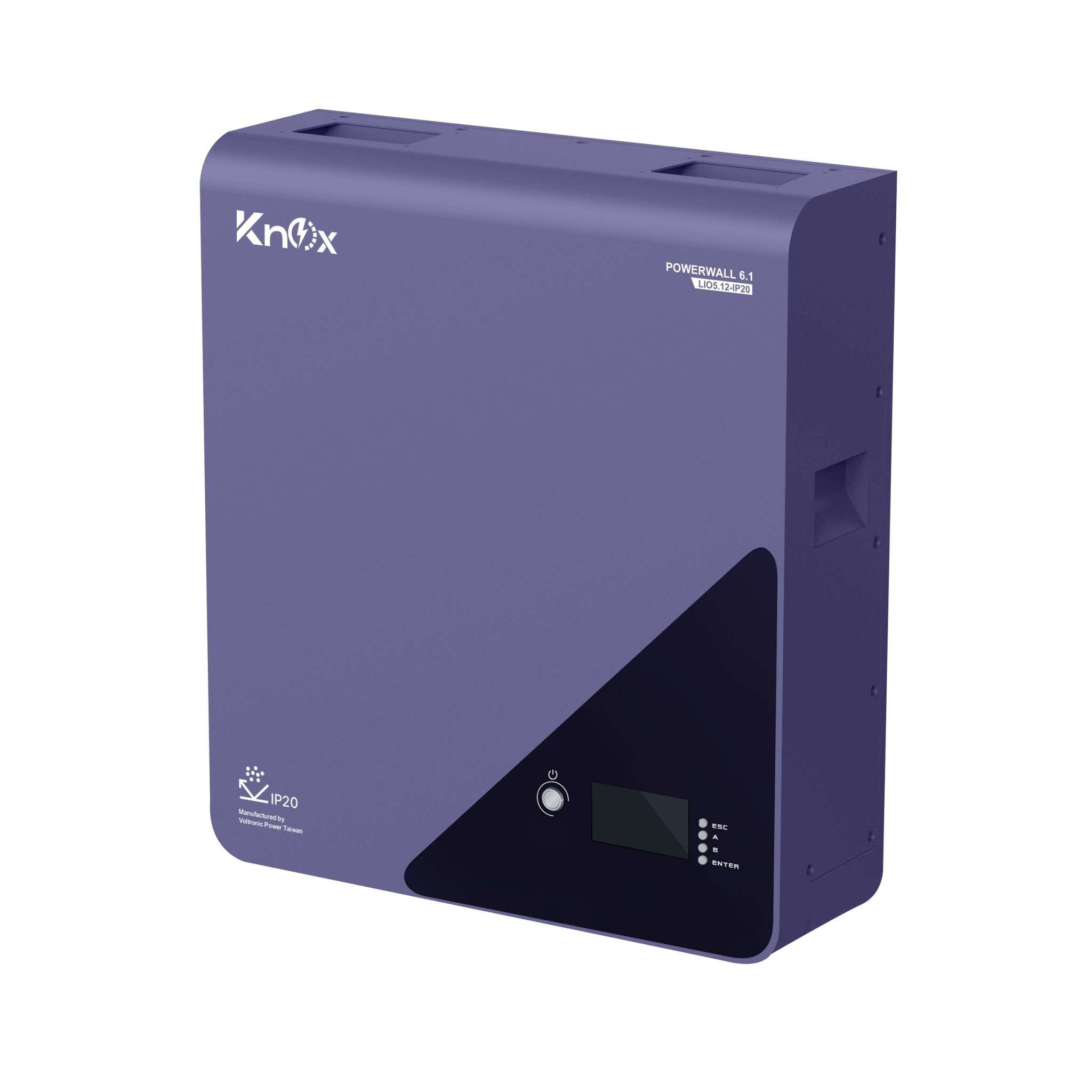

Built-in Active Cell Balancing, ensuring optimal performance and longevity of the battery pack ,Wall-mounted scalable Lithium-ion battery module
Scalable design up to 16 units.
Specification: : LIO 5.12-IP20
Battery Cell Technology :Lithium Iron Phosphate
Nominal Voltage :51.2 V
Battery Capacity :100Ah
Max. Continuous Charging / Discharging Current:50A/100@25°C
Max. Charging Voltage:57.6 V
Max. Discharging Voltage: 43.2 V
Max. Parallel Unit :15
Dimension : D X W X H (mm):140 x 450 x 500
Net Weight (kg) : 43
ENVIRONMENT:
Operation Temperature charge : 0°C~45°C
Operation Temperature discharge : -20°C~60°C (>45°C derating)
Operation Humidity: 5% ~ 95% RH (non-condensing)
Operation Air Pressure :61 kPa~ 113 kPa
Lifecycle 6000 cycles @80% 25°C | 4000 cycles @80% 35°C
Mangement
IP Protection: IP20
BMS Communication: RS485, RS232, CAN
Safety Standard EN IEC 61000-6-3, EN IEC 61000-6-1, EN IEC 61000-3-2, IEC 61000-3-3, IEC 62619, UN38.3
5 YEARS WARRANTY COMPELETE BMS CELLS REPLACEMENT
