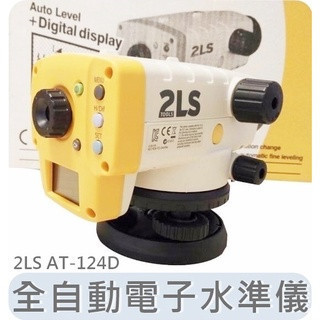

2LS Orion + DIGITAL LEVEL SPECIFICATION:
Rion+ Specifications
Accuracy (height) ±2.0mm at 30m
Accuracy (distance) ±10mm @ 10m
Working range (Tape staff) 0.9 to 30m (2.9 to 98ft) Working Range (Aluminum Staff) 2.0 to 50m (6.5 to 164ft)
Measuring time <2sec
Magnification 20X
Self-compensation range ±12°
TELESCOPE Length 206mm
Magnification 20X
Objective aperture 30mm (1.18in.)
Resolving power 4.5"
Field of view 1°20'
Minimum focus 0.9m (2.9ft)
Image Erect
Stadia ratio 1:100
Stadia constant 100
COMPENSATOR
Type Pendulum compensator with magnetic damping system
Working range ±12'
HEIGHT MEASUREMENT
Accuracy
Electronic reading ±2.0mm at 30m
Optical reading ±2.0mm at 30m
Measuring range
Tape staff BCX 0.9 to 30m (2.9 to 98ft)
Aluminum staff BAS 2.0 to 50m (6.5 to 164ft)
Measuring time <2sec
Least count 0.001m, 0.01ft
Minimum light for measurement 20lx. @ staff surface
DISTANCE MEASUREMENT
Accuracy
Aluminum staff BAS
D<=10m ±10mm 1
0m<D<=50m ±0.25% x D
Least count 0.01m, 0.1ft
USER INTERFACE
Display 7 segment and character LCD with backlight
Keyboard 6 keys (5 on front panel, 1 on side)
Circular level sensitivity 8'/2mm
MEASUREMENT PROGRAM
MeasurementProgram Single/Continuous/Elevation/Height difference
ENVIRONMENTAL
Water and dust resistance IP55 Category2
Operating temperature -20ºC to +50ºC
